Cabinet power cord integration Outdoor Rental Led Display For Concert Stage Event
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | Charming |
| گواهی: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| شماره مدل: | P2.9 & P3.91 |
پرداخت:
| مقدار حداقل تعداد سفارش: | 2 عدد |
|---|---|
| قیمت: | قابل مذاکره |
| جزئیات بسته بندی: | پرونده کارتن ، کیس چوبی ، پرونده پرواز |
| زمان تحویل: | 30 روز کاری پس از پرداخت |
| شرایط پرداخت: | L/C ، T/T ، Western Union ، PayPal ، Cash |
| قابلیت ارائه: | 500 قطعه در هفته |
|
اطلاعات تکمیلی |
|||
| بعد (میلی متر): | 500x500x79mm & 500x1000x79mm | استاندارد LED: | SMD1415 & SMD1921 |
|---|---|---|---|
| زاویه مشاهده: | 140 درجه | max.power (w: | 200 وات و 400 وات |
| روشنایی (CD/M²): | cd 3500 CD/㎡ | دمای کار: | -20 تا 60 درجه سانتی گراد |
| ولتاژ کار: | AC 110V/220V ، 15 ± | سطح حفاظت: | IP65 |
| ماده کابینه: | آلیاژ آلومینیوم | نرخ تازه کردن (هرتز): | 7680 هرتز |
| برجسته کردن: | outdoor rental LED display,cabinet power cord LED display,concert stage LED display,cabinet power cord LED display,concert stage LED display |
||
توضیحات محصول

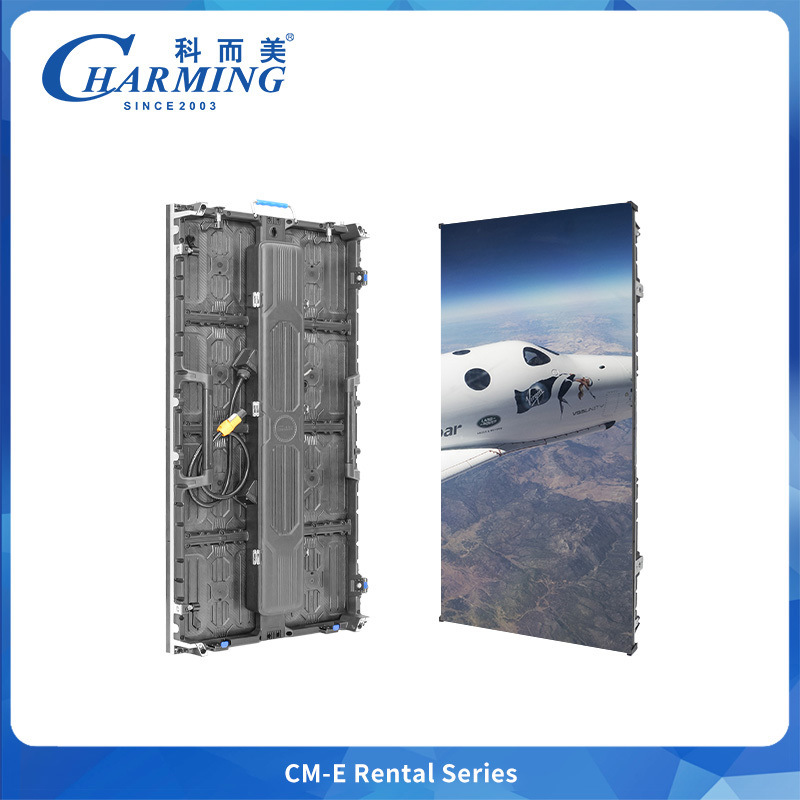

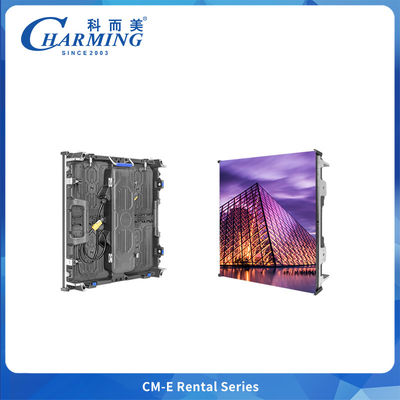

Cabinet power cord integration Outdoor Rental Led Display For Concert
Stage Event
Key Features:
--Seamless disassembly and assembly, enabling maintenance with zero hassle.
--Features an innovative patented HUB with a signal indicator for superior protection.
--Unified cabinet power cord design, achieving a 150% uplift in productivity.
--Staggered splicing design empowers versatile and modular combination throughout
the product series.
--Direct Ethernet port links to the card receiver, refined internal contacts — signal stability is multiplied
by a factor of three.
Product parameter:
|
Type Number
|
P2.9
|
P2.9 | P3.91 | P3.91 |
|
Dimension(MM)
|
500x500x79mm | 500x1000x79mm | 500x500x79mm | 500x1000x79mm |
|
Max.Power(W)
|
200W | 400W | 200W | 400W |
|
Cabinet Weight(KG)
|
6.4kG | 11KG | 6.4KG | 11KG |
|
Cabinet Material
|
Aluminum Alloy
|
Aluminum Alloy
|
Aluminum Alloy
|
Aluminum Alloy
|
|
Maintenance Method
|
Back Maintenance
|
Back Maintenance
|
Back Maintenance
|
Back Maintenance
|
|
Refresh Rate(Hz)
|
7680Hz | 7680Hz | 7680Hz | 7680Hz |
|
Grey Level
|
14-16 Bit
|
14-16 Bit
|
14-16 Bit
|
14-16 Bit
|
|
Working Temperature
|
10%-90%RH
|
10%-90%RH
|
10%-90%RH
|
10%-90%RH
|
|
Life Span
|
≥50000 Hours
|
≥50000 Hours
|
≥50000 Hours
|
≥50000 Hours
|
(Detail Drawing)
Company Introduction:
Charming Co., Ltd has always been committed to technical innovation and service of global entertainment lighting & LED. In 2003, the world's first LED display was brought into the field of the entertainment applications, and continues to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting LED.
It has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications. Adhering to the corporate philosophy of "Charming Achieve Beauty", we have an international standard full-automatic LED display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 23 years.
