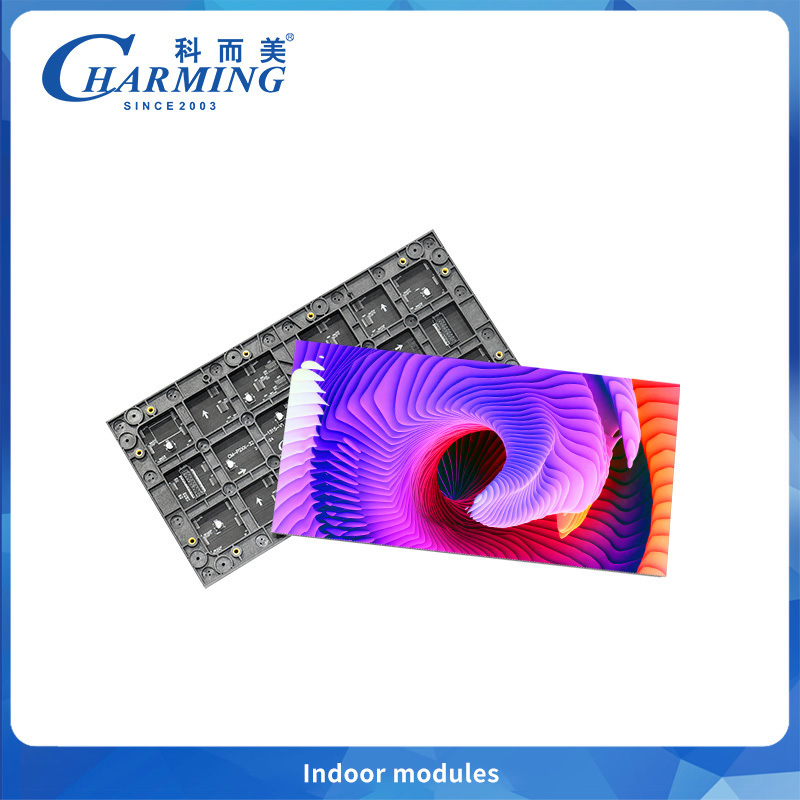

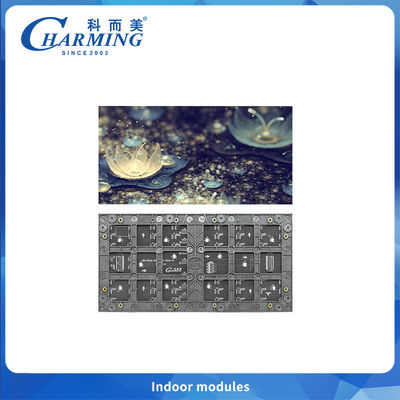

P2.0 LED Display Indoor Module for Silk-Smooth Visuals 800CD/m² and 7680Hz Refresh Rate for Vivid Displays
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | charming |
| گواهی: | CE,ROHS,LVD,EMC,CB,BIS,UL |
| شماره مدل: | P2 |
پرداخت:
| مقدار حداقل تعداد سفارش: | 10 عدد |
|---|---|
| قیمت: | قابل مذاکره |
| جزئیات بسته بندی: | پرونده کارتن ، کیس چوبی ، پرونده پرواز |
| زمان تحویل: | 7 روز کاری پس از پرداخت |
| شرایط پرداخت: | Western Union ، L/C ، T/T ، PayPal ، Cash |
| قابلیت ارائه: | 10000 قطعه در هفته |
|
اطلاعات تکمیلی |
|||
| نرخ تازه سازی (هرتز): | 7680 هرتز | روشنایی (CD/): | 800 |
|---|---|---|---|
| ابعاد (میلی متر): | 320×160 میلی متر | تراکم پیکسل (نقطه/): | 250000 نقطه در متر مربع |
| طول عمر: | 100000 ساعت | سطح حفاظت: | IP42 |
| رطوبت کاری: | 10٪ - 90٪ RH | زاویه دید: | 120 درجه |
| دمای کاری: | -20 تا 50 ℃ | ولتاژ کاری: | DV 5V |
| برجسته کردن: | P2.0 LED display module,indoor LED video wall,high refresh rate LED display,indoor LED video wall,high refresh rate LED display |
||
توضیحات محصول
Specification
| Type Number | P2 |
| Dim ension(MM) | 320*160*MM |
| Module Maximum power(w) | 22 |
| LED Standard | SMD 1515 |
| Scan Mode | 1/40Scan |
| Pixel Density(Dot/m²) | 150000Dot/m² |
| Refresh Rate(Hz) | 7680Hz |
| Brightness(CD/ m²) | 800 |
| Pixel Pitch(MM) | 2 |
| Protection Level | IP42 |
| Grey Level | 14-16bit |
| Working Temperature | -20~50°C |
| Working Humidity | 10％~90％RH |
| Life Span | 100000 Hours |
| Working Voltage | DC 5V |
