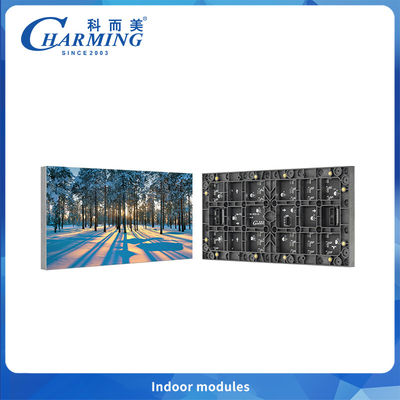

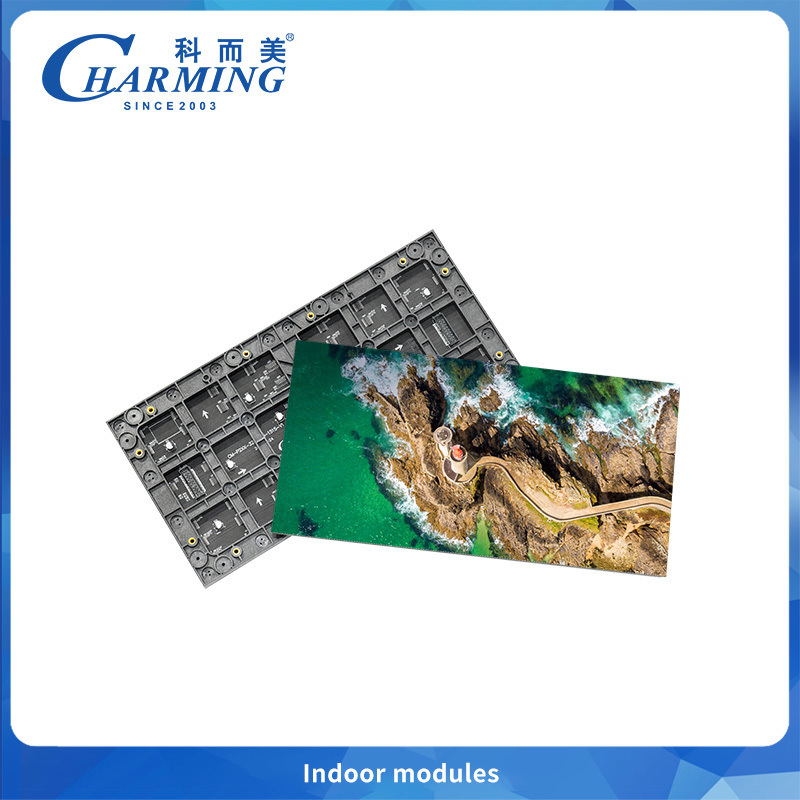

Precision Display P1.25/P1.53/P1.86 Indoor LED modules For Broadcasting Showroom & Command Centers

جزئیات محصول:

محل منبع: چین
نام تجاری: charming
گواهی: CE,ROHS,LVD,EMC,CB,BIS,UL
شماره مدل: p1.25/p1.53/p1.86

پرداخت:

مقدار حداقل تعداد سفارش: 10 عدد
قیمت: قابل مذاکره
جزئیات بسته بندی: پرونده کارتن ، کیس چوبی ، پرونده پرواز
زمان تحویل: 7 روز کاری پس از پرداخت
شرایط پرداخت: Western Union ، L/C ، T/T ، PayPal ، Cash
قابلیت ارائه: 10000 قطعه در هفته
بهترین قیمت مخاطب

اطلاعات تکمیلی
ابعاد (میلی متر): 320×160 میلی متر نرخ تازه سازی (هرتز): 3840 هرتز
تراکم پیکسل (نقطه/): 640000 نقطه در متر مربع روشنایی (CD/): ≥600
سطح حفاظت: IP40 زاویه دید: 120 درجه
طول عمر: 100000 ساعت رطوبت کاری: 10٪ - 65٪ RH
دمای کاری: -20 تا 50 ℃ ولتاژ کاری: AC 220V/(110V)±15%
برجسته کردن:

Precision LED display modules,Indoor LED video wall,Broadcasting LED display modules

,

Indoor LED video wall

,

Broadcasting LED display modules

توضیحات محصول

Precision Display P1.25/P1.53/P1.86 Indoor LED modules For Broadcasting Showroom & Command Centers

Product Description
  Precision Display P1.25/P1.53/P1.86 Indoor LED modules For Broadcasting Showroom & Command Centers 0

Specification


Type Number P1.25 P1.53 P1.86
Dim ension(MM) 320*160*MM 320*160*MM 320*160*MM
Module Maximum power(w) 24W 24W 19W
LED Standard SMD1010 SMD1212 SMD1515
Scan Mode 1/64Scan 1/52Scan 1/43Scan
Pixel Density(Dot/m²) 640000Dot/m² 422500Dot/m² 288906 Dot/m²
Refresh Rate(Hz) 3840Hz 3840Hz 3840Hz
Brightness(CD/ m²) 600 ≥600 600
Pixel Pitch(MM) 1.25 1.53 1.86
Protection Level IP40 IP40 IP40
Grey Level 14-16bit 14-16bit 14-16bit
Working Temperature -20~50°C -20~50°C -20~50°C
Working Humidity 10％~65％RH 10％~65％RH 10％~65％RH
Life Span ≥50000 Hours ≥50000 Hours ≥50000 Hours
Working Voltage AC 220V/(110V)±15% AC 220V/(110V)±15% AC 220V/(110V)±15%



Precision Display P1.25/P1.53/P1.86 Indoor LED modules For Broadcasting Showroom & Command Centers 1Precision Display P1.25/P1.53/P1.86 Indoor LED modules For Broadcasting Showroom & Command Centers 2Precision Display P1.25/P1.53/P1.86 Indoor LED modules For Broadcasting Showroom & Command Centers 3Precision Display P1.25/P1.53/P1.86 Indoor LED modules For Broadcasting Showroom & Command Centers 4
CASE SHOW
Precision Display P1.25/P1.53/P1.86 Indoor LED modules For Broadcasting Showroom & Command Centers 5Precision Display P1.25/P1.53/P1.86 Indoor LED modules For Broadcasting Showroom & Command Centers 6


Company Profile



Charming Co., Ltd. - Shaping the Future of Entertainment LED Since 2003

As the innovator behind the world's first entertainment LED display, we lead the industry with:
✔ 100+ patents
✔ Full international certification (CE, ISO9001, etc.)
✔ 10,000 sqm automated factory
✔ 22 years serving 150+ countries

Our "Charming Achieve Beauty" philosophy drives us to deliver technically advanced, reliable LED solutions for global stages and events.

Precision Display P1.25/P1.53/P1.86 Indoor LED modules For Broadcasting Showroom & Command Centers 7Precision Display P1.25/P1.53/P1.86 Indoor LED modules For Broadcasting Showroom & Command Centers 8Precision Display P1.25/P1.53/P1.86 Indoor LED modules For Broadcasting Showroom & Command Centers 9Precision Display P1.25/P1.53/P1.86 Indoor LED modules For Broadcasting Showroom & Command Centers 10Precision Display P1.25/P1.53/P1.86 Indoor LED modules For Broadcasting Showroom & Command Centers 11



Provide


1.Free technical training including factory operation and maintenance.



2.Complete documentation package: manuals, software, test reports, etc.



3.Full certifications available (CE, UL, etc.).



Why choice charming?


  • RICH EXPERIENCES | CHARMING BRAND

Since its establishment in 2003, CHARMING BRAND has emerged as a pioneer in LED application products, excelling in research, development, and production. Our footprint extends across 150+ countries, backed by over 20,000 accomplished service projects.



  • FOCUS ON QUALITY

We meticulously select top-tier raw material suppliers in the industry. Each material undergoes rigorous testing with advanced R&D equipment, and every detail of craftsmanship is carefully scrutinized. Our fully automated 6S production line is precision-engineered, maintaining an accuracy within 1 silk meter to guarantee product stability and reliability.
