Mobile App Controlled Indoor LED Video Wall with Wireless Program Publishing and Front Maintenance
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | Charming |
| گواهی: | CE,ROHS,LVD,EMC,CB,BIS,UL |
| شماره مدل: | P1.8، P2، P2.5 |
پرداخت:
| مقدار حداقل تعداد سفارش: | 2 عدد |
|---|---|
| قیمت: | قابل مذاکره |
| جزئیات بسته بندی: | پرونده کارتن ، کیس چوبی ، پرونده پرواز |
| زمان تحویل: | 7 روز کاری پس از پرداخت |
| شرایط پرداخت: | Western Union ، L/C ، T/T ، PayPal ، Cash |
| قابلیت ارائه: | 10000 قطعه در هفته |
|
اطلاعات تکمیلی |
|||
| شماره را تایپ کنید: | P1.86 P2 P2.5 | اندازه کابینت: | 657*2075*490mm |
|---|---|---|---|
| طول عمر: | 50000 ساعت | فرکانس تازه کردن: | 7680 هرتز |
| دمای عملیات: | -20 ~ 40 | درجه IP: | IP43 |
| مقیاس خاکستری: | 14-16 بیت | روشنایی صفحه نمایش: | 800 سی دی/㎡ |
| برجسته کردن: | Mobile App Controlled LED Video Wall,Front Maintenance LED Display,Wireless Program Publishing LED Screen,Front Maintenance LED Display,Wireless Program Publishing LED Screen |
||
توضیحات محصول

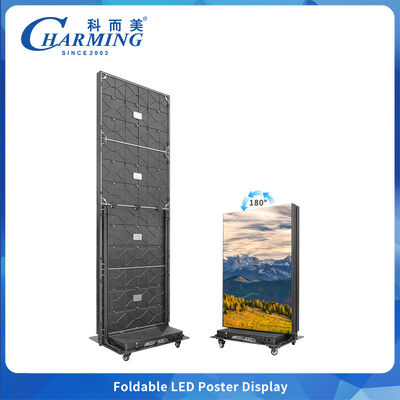

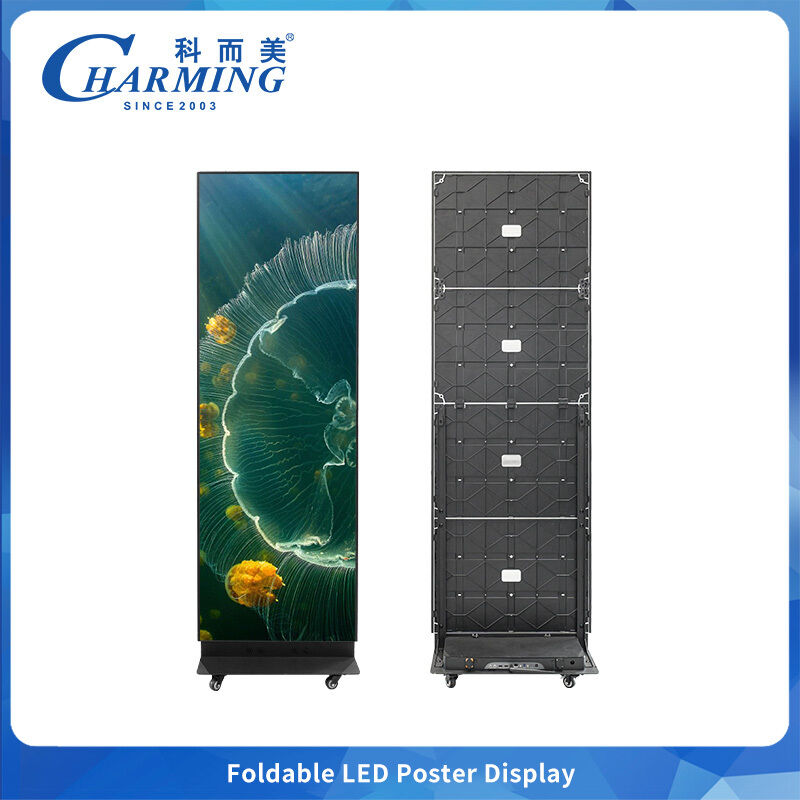

Mobile App Controlled Indoor LED Video Wall

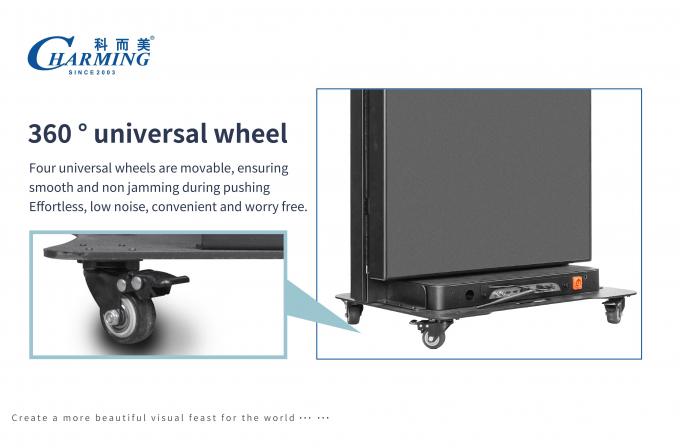

High-performance foldable LED screen display with P1.86, P2, and P2.5 pixel pitch options featuring wireless program publishing and front maintenance capabilities. Designed with 25% less packaging space and 360° universal wheels for easy mobility, perfect for indoor rental and advertising applications.
Technical Specifications
| Specification | P1.86 | P2 | P2.5 |
|---|---|---|---|
| Dimension | 657*2075*490mm | ||
| Maximum Power | 600W | ||
| Brightness | 600 CD/㎡ | 600 CD/㎡ | 800 CD/㎡ |
| LED Standard | SMD1515 | SMD1515 | SMD2020 |
| Viewing Angle | 140° | ||
| Protection Level | IP43 | ||
| Refresh Rate | 7680Hz | ||
| Pixel Pitch | 1.86MM | 2MM | 2.5MM |
| Scan Mode | 1/43 Scan | 1/40 Scan | 1/32 Scan |
| Pixel Density | 288906 Dot/㎡ | 202500 Dot/㎡ | 160000 Dot/㎡ |
| Grey Level | 14-16 Bit | ||
| Working Temperature | -20~40°C | ||
| Life Span | 50000 Hours | ||
| Working Voltage | AC220V, 50/60HZ | ||
About Charming Co., Ltd.
Since 2003, Charming Co., Ltd. has revolutionized entertainment lighting by introducing the world's first purpose-built LED display for stage applications. Today, we're proud to be China's favorite entertainment LED brand, trusted by professionals worldwide.
What Makes Us Special?
- Innovation: Nearly 100 patents and counting
- Quality: ISO-certified manufacturing in our 10,000 sqm smart factory
- Global Reach: 22 years of excellence across 150+ countries
Why Choose Charming?
Rich Experience & Established Brand
Since its establishment in 2003, CHARMING BRAND has emerged as a pioneer in LED application products, excelling in research, development, and production. Our footprint extends across 150+ countries, backed by over 20,000 accomplished service projects.
Focus on Quality
We meticulously select top-tier raw material suppliers in the industry. Each material undergoes rigorous testing with advanced R&D equipment, and every detail of craftsmanship is carefully scrutinized. Our fully automated 6S production line is precision-engineered, maintaining accuracy within 1 silk meter to guarantee product stability and reliability.
Military-Grade Process Control
Every production link - material sourcing, assembly line, aging tests, to warehouse dispatch - is meticulously controlled and fully traceable. With stringent quality protocols and comprehensive records, we ensure unwavering reliability at each step, delivering flawless products that empower customer projects.
End-to-End Professional Support
Our professional services cover the entire customer journey - from initial consultation to post-purchase support. With a specialized technical team, we deliver customized product design, expert installation guidance, and full project lifecycle support. Positioned at the industry's forefront, we provide authoritative advice and tailored solutions at every stage.
Warranty & Support
Comprehensive Warranty Coverage
- 2-Year Full Warranty - Free repair or replacement for all displays, modules, and components
- Lifetime Maintenance - Only material costs apply after warranty period
Technical Support Services
- Free professional training (operation & maintenance)
- Complete documentation (manuals, software guides, test reports, CAD drawings)
- Expert consultation & customized solutions
After-Sales Service
- On-site support (upon request)
- Remote troubleshooting
- Regular maintenance recommendations
- Software/firmware updates
- Spare parts supply
We provide not just premium products, but complete peace of mind with end-to-end support throughout your project lifecycle.
