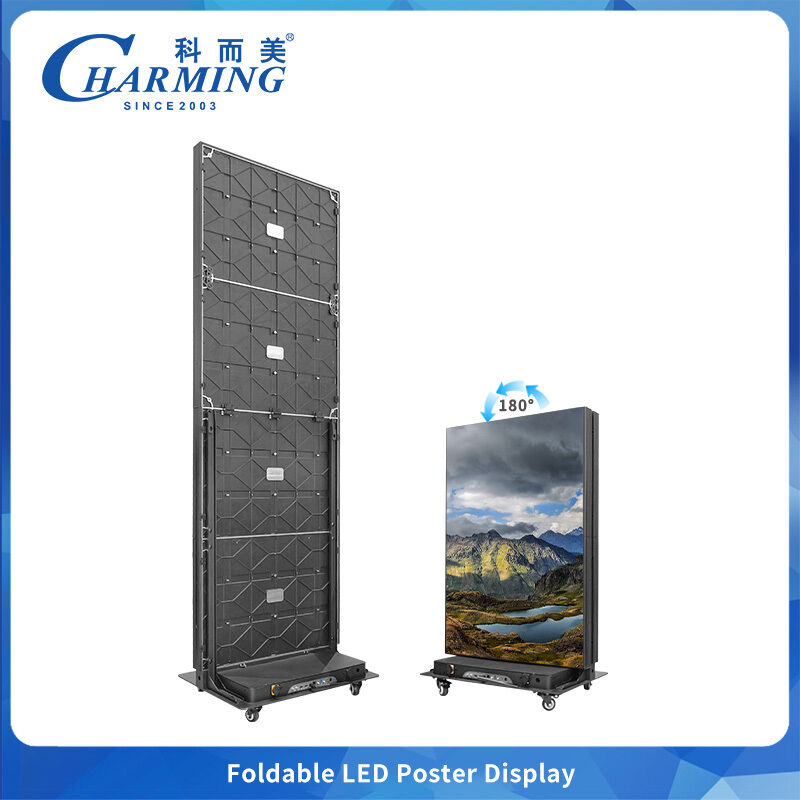

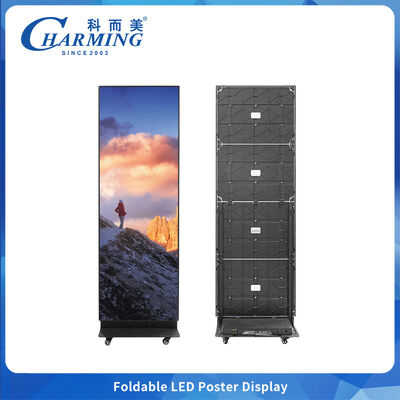

Smart Phone Controlled LED Video Wall with P1.86 P2 P2.5 Pixel Pitch and Foldable Design for Easy Operation
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | Charming |
| گواهی: | CE,ROHS,LVD,EMC,CB,BIS,UL |
| شماره مدل: | P1.8، P2، P2.5 |
پرداخت:
| مقدار حداقل تعداد سفارش: | 2 عدد |
|---|---|
| قیمت: | قابل مذاکره |
| جزئیات بسته بندی: | پرونده کارتن ، کیس چوبی ، پرونده پرواز |
| زمان تحویل: | 7 روز کاری پس از پرداخت |
| شرایط پرداخت: | Western Union ، L/C ، T/T ، PayPal ، Cash |
| قابلیت ارائه: | 10000 قطعه در هفته |
|
اطلاعات تکمیلی |
|||
| اندازه کابینت: | 657*2075*490mm | شماره را تایپ کنید: | P1.86 P2 P2.5 |
|---|---|---|---|
| فرکانس تازه کردن: | 7680 هرتز | روشنایی صفحه نمایش: | 800 سی دی/㎡ |
| طول عمر: | 50000 ساعت | درجه IP: | IP43 |
| مقیاس خاکستری: | 14-16 بیت | دمای عملیات: | -20 ~ 40 |
| برجسته کردن: | Smart Phone Controlled LED Video Wall,P1.86 P2 P2.5 Pixel Pitch LED Display Screen,Foldable Design LED Screen,P1.86 P2 P2.5 Pixel Pitch LED Display Screen,Foldable Design LED Screen |
||
توضیحات محصول
Smart Phone Controlled LED Video Wall
High-performance foldable LED screen display with P1.86, P2, and P2.5 pixel pitch options featuring wireless program publishing and front maintenance capabilities. Designed with 25% less packaging space and 360° universal wheels for easy mobility, perfect for indoor rental and advertising applications.
Technical Specifications
| Specification | P1.86 | P2 | P2.5 |
|---|---|---|---|
| Dimension | 657*2075*490mm | ||
| Maximum Power | 600W | ||
| Brightness | 600 CD/㎡ | 600 CD/㎡ | 800 CD/㎡ |
| LED Standard | SMD1515 | SMD1515 | SMD2020 |
| Viewing Angle | 140° | ||
| Protection Level | IP43 | ||
| Refresh Rate | 7680Hz | ||
| Pixel Pitch | 1.86MM | 2MM | 2.5MM |
| Scan Mode | 1/43 Scan | 1/40 Scan | 1/32 Scan |
| Pixel Density | 288906 Dot/㎡ | 202500 Dot/㎡ | 160000 Dot/㎡ |
| Grey Level | 14-16 Bit | ||
| Working Temperature | -20~40°C | ||
| Life Span | 50000 Hours | ||
| Working Voltage | AC220V, 50/60HZ | ||
About Charming Co., Ltd.
Since 2003, Charming Co., Ltd. has revolutionized entertainment lighting by introducing the world's first purpose-built LED display for stage applications. Today, we're proud to be China's favorite entertainment LED brand, trusted by professionals worldwide.
What Makes Us Special?
- Innovation: Nearly 100 patents and counting
- Quality: ISO-certified manufacturing in our 10,000 sqm smart factory
- Global Reach: 22 years of excellence across 150+ countries
Warranty & Support
Comprehensive Warranty Coverage
- 2-Year Full Warranty - Free repair or replacement for all displays, modules, and components
- Lifetime Maintenance - Only material costs apply after warranty period
Technical Support Services
- Free professional training (operation & maintenance)
- Complete documentation (manuals, software guides, test reports, CAD drawings)
- Expert consultation & customized solutions
After-Sales Service
- On-site support (upon request)
- Remote troubleshooting
- Regular maintenance recommendations
- Software/firmware updates
- Spare parts supply
We provide not just premium products, but complete peace of mind with end-to-end support throughout your project lifecycle.
