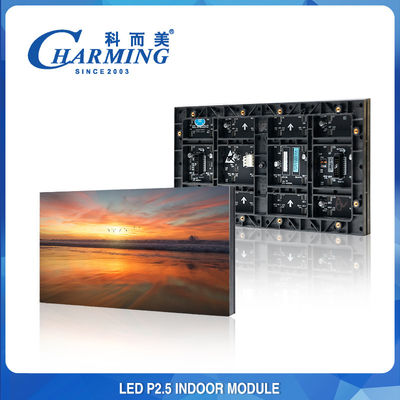

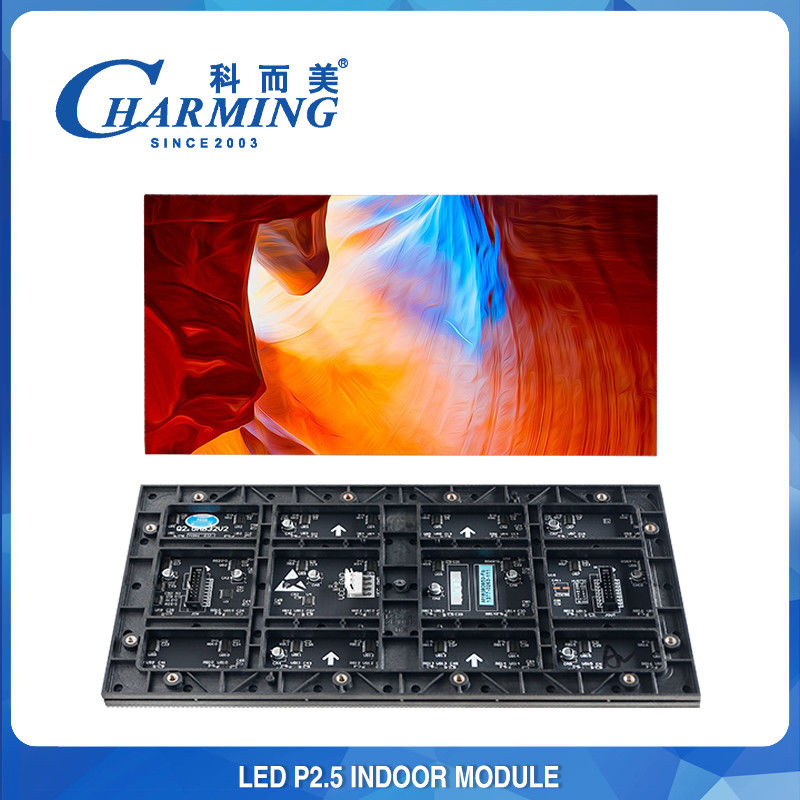

Indoor LED Display Modules with High Refresh Rate and Lossless Image Ideal for Indoor Advertising and Event Video Walls
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | Charming |
| گواهی: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| شماره مدل: | P2/P2.5/P3/P4/P5 |
پرداخت:
| مقدار حداقل تعداد سفارش: | 10 عدد |
|---|---|
| قیمت: | قابل مذاکره |
| جزئیات بسته بندی: | جعبه کارتن، جعبه چوبی، کیف پرواز |
| زمان تحویل: | 5 روز کاری پس از پرداخت |
| شرایط پرداخت: | L/C ، T/T ، Western Union ، PayPal ، Cash |
| قابلیت ارائه: | 10000 قطعه در هفته |
|
اطلاعات تکمیلی |
|||
| اندازه ماژول: | 320x160 میلی متر | نرخ تازه سازی (هرتز): | 3840 هرتز / 1920 هرتز |
|---|---|---|---|
| زاویه دید: | 120 درجه | روشنایی: | 600-800CD/m² |
| تراکم پیکسل (نقطه/㎡): | 160000 نقطه در متر مربع | درجه IP: | IP50 داخلی |
| استاندارد LED: | smd 2020 استاندارد | سطح خاکستری: | 16 بیت |
| ماژول حداکثر توان (W): | 24 وات | دمای کاری: | -20 تا 50 درجه سانتی گراد |
| برجسته کردن: | Indoor LED display modules high refresh rate,LED display modules lossless image,Indoor advertising LED video wall,LED display modules lossless image,Indoor advertising LED video wall |
||
توضیحات محصول
Indoor LED Display Modules with High Refresh Rate and Lossless Image Ideal for Indoor Advertising and Event Video Walls
Product details
Product Parameters
|
Module Pixel |
P2 | P2.5 |
P3 |
P4 | P5 |
|---|---|---|---|---|---|
|
Dimension(MM) |
320x160mm | 320x160mm |
192x192mm |
256x128mm | 320x160mm |
|
Max Power(W) |
22W | 24W |
25W |
20W | 22W |
|
Scan Mode |
1/40scan | 1/32scan |
1/32scan |
1/16scan | 1/16scan |
|
Refresh Rate(Hz) |
1920Hz/3840Hz | 1920Hz/3840Hz |
1920Hz/3840Hz |
1920Hz/3840Hz | 1920Hz/3840Hz |
|
Pixel Density(Dot/ ㎡)
|
250000 Dot/m²
|
160000 Dot/m²
|
111111Dot/m²
|
62500 Dot/m²
|
40000 Dot/m²
|
|
Led Standard |
SMD1515 |
SMD2020
|
SMD2020
|
SMD2020
|
SMD2020
|
|
Brightness(CD/M²) |
800CD/M² |
≥800CD/M² | ≥600CD/M² | ≥800CD/M² | ≥800CD/M² |
|
Viewing Angle |
120° |
||||
|
IP Rate |
IP50 |
||||
|
Life Span
|
≥50000 Hours
|
||||
|
Working Voltage
|
DC 5V
|
||||
|
Grey Level |
16 bit |
||||
|
Working Temperature |
20~60℃ |
||||
|
Working Humidity |
10%~90%RH |
||||
|
Life Span |
≥50000 Hours |
||||
|
Working Voltage |
AC110V/220V | ||||
ChamingLED
With over 20 years of experience, Charming LED is a trusted leader in digital signs and billboards. We help you choose the right LED solution to make your business stand out. Rely on our vibrant electronic signage to stay ahead of competitors. Call our LED experts today!
Project Cases
What we offer to customer?
Q1. How can I get the price?
A: We usually provide a quote within 24 hours after receiving your inquiry.
If you need the price urgently, please email us or contact us through other channels so that we can offer a quote promptly.
Q2. What's the warranty?
A: We offer a 2-year warranty. We will prepare sufficient spare parts for you. If any parts are broken, they can be replaced in time without affecting usage.
Q3. Can we make any size of LED display?
A: Not exactly. The size is based on the LED module and cabinet dimensions. For example, for rental outdoor LED displays, the smallest unit size is 500x1000mm.
Q4. How to ship?
A: Typically, the display can be shipped by air or sea. We recommend sea freight as it is more cost-effective.
Q5. How to make the payment?
A: You can make the payment via TT, Western Union
