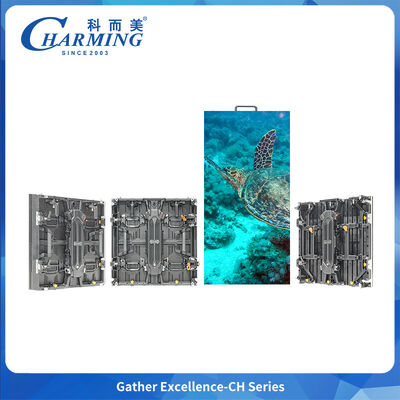

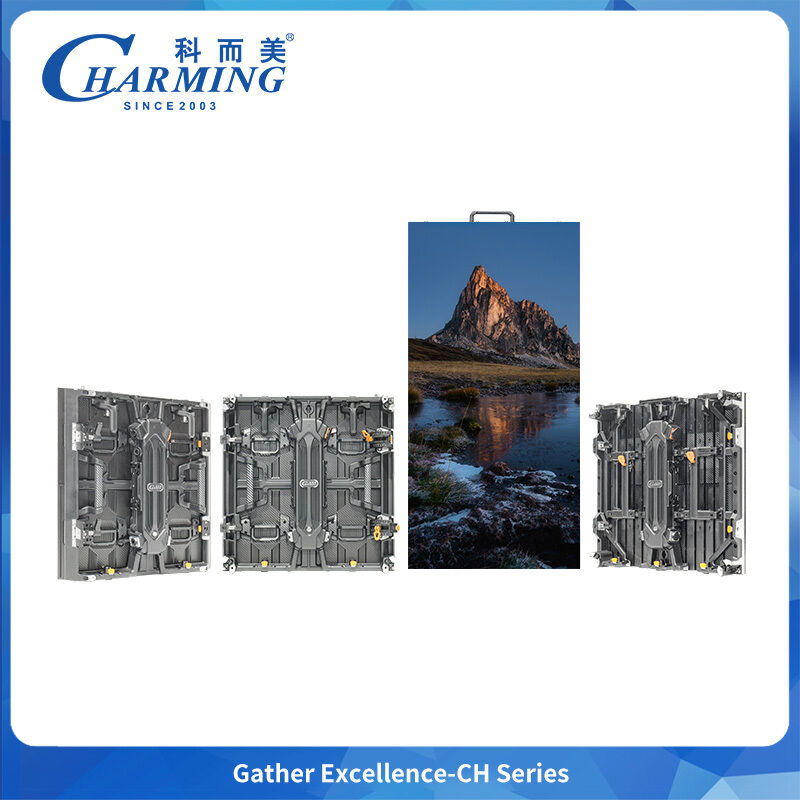

CH Series Outdoor LED Screen High Waterproof IP65 and Curved Interlocking Design for Events
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | Charming |
| گواهی: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| شماره مدل: | LU-40 |
| سند: | CH SERIES P3.91.pdf |
پرداخت:
| مقدار حداقل تعداد سفارش: | 10 عدد |
|---|---|
| قیمت: | قابل مذاکره |
| جزئیات بسته بندی: | جعبه کارتن، جعبه چوبی، کیف پرواز |
| زمان تحویل: | 30 روز کاری پس از پرداخت |
| شرایط پرداخت: | L/C ، T/T ، Western Union ، PayPal ، Cash |
| قابلیت ارائه: | 500 PCS در هفته |
|
اطلاعات تکمیلی |
|||
| سطح خاکستری: | 14-16 بیت | دمای کار صفحه نمایش: | -20 ~ 60 ℃ |
|---|---|---|---|
| فاصله مشاهده: | > 3.91 متر | رطوبت عملیاتی: | 10٪ ~ 90٪ RH |
| برجسته کردن: | Outdoor LED screen waterproof IP65,Curved LED video wall interlocking,Outdoor LED display for events |
||
توضیحات محصول
CH Series Outdoor LED Screen for Concert Stages and Rental Events
Professional outdoor LED display solution offering exceptional performance for rental events with ultra thin lightweight curved interlocking design and IP65 waterproof rating.
Product Features
Ultra-thin Design
- Only 84mm thickness for regular and curved cabinets, 87mm for flexible cabinets
One-click Degaussing & Front/Rear Maintenance
- Magnetic modules with spring-loaded captive screws and handle for quick removal
Special Handle Design
- Single operator can handle lifting, removal, and installation
Full Range Interlocking
- Regular, curved, right-angle, flexible, and 45° beveled cabinets can interlock in various configurations (straight, curved, offset, irregular)
Adjustable Curvature
- Regular, curved, right-angle, flexible, and 45° beveled cabinets can interlock in various configurations (straight, curved, offset, irregular)
Product Parameters
| Parameter | P3.91 |
|---|---|
| Pixel Pitch | 3.91mm |
| LED Configuration | SMD1921 |
| Pixel Density | 65536 dot/m² |
| Module Size | 250×250mm |
| Cabinet Size | 500×500×84mm |
| Cabinet Weight | 7.9KG |
| IP Rating (front/back) | IP65 |
| Viewing Angle | 120° |
می خواهید اطلاعات بیشتری در مورد این محصول بدانید
